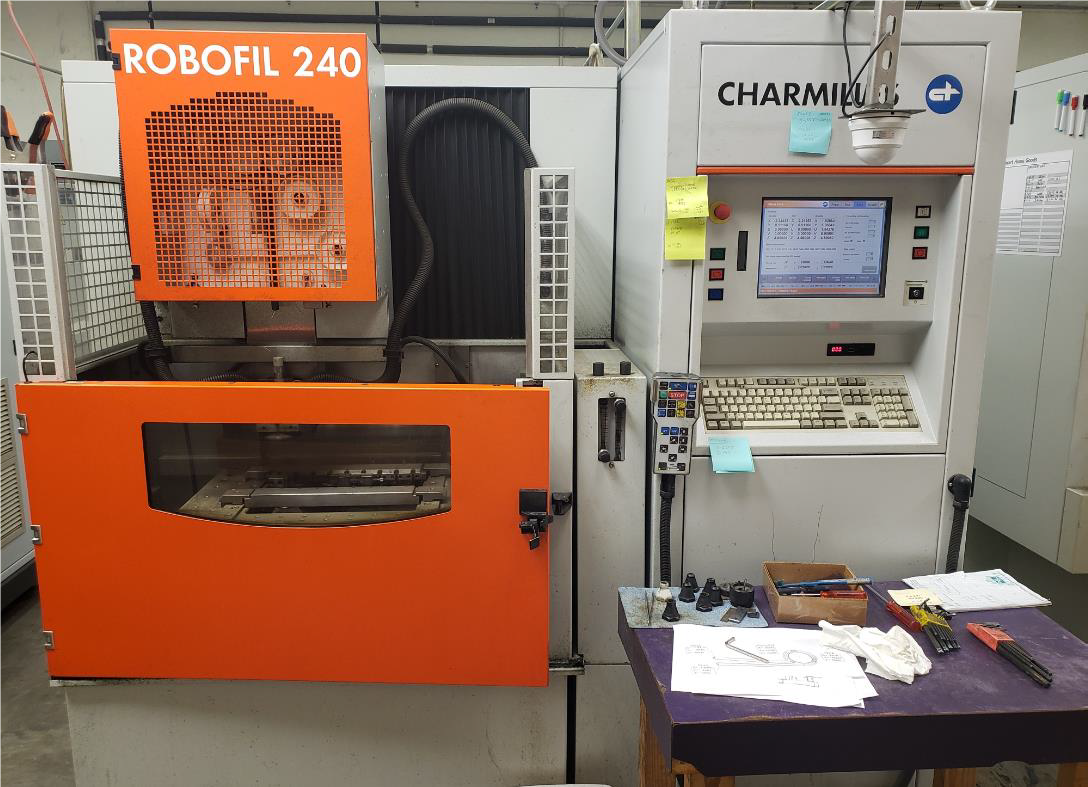

Charmilles FI240 Wire EDM Low Hours !!

Contact your Sales Representative for more information.

Description

For pricing contact Tim Zak at 224-372-7403 or email tzak@midwest-ms.com

Year 2002

X, Y, Z travel in. 13.77” x 8.66” x 8.66”
U, V travel in. 13.77” x 8.66”
Max. taper °/in. ± 30/8.66”

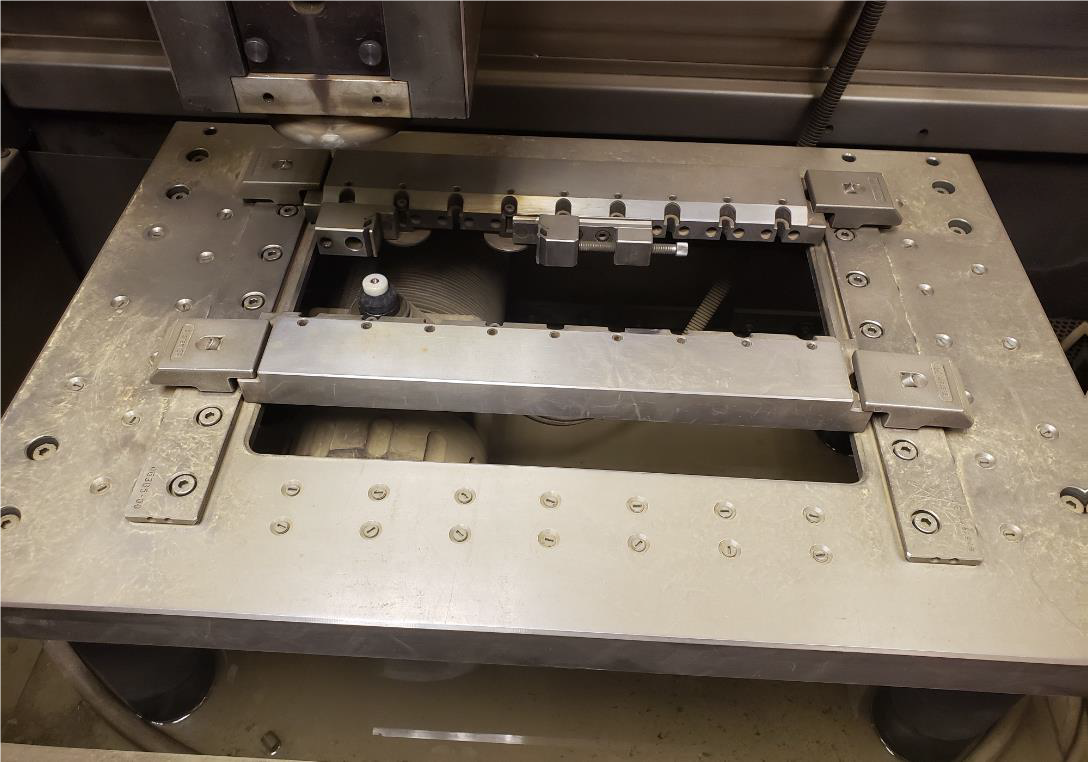

Max. workpiece dimensions 39.37” x 21 .65” x 8.66”
Max. workpiece weight 1,653 lbs.
Anti-Collision Protection Standard all 5 axis
Wire diameters available in. 0.012” to 0.004”
Automatic threading for wire .0012” to .0004”
Min. finishing μm Ra 0.2
Closed diamond wire guides
Largest spool size 17.6 lbs. (K160)
Position measurement system Linear Glass scales
Measurement resolution μ in. 0.00002
Control – CT Millennium
Operating system Windows
Hard disk capacity 10 GB

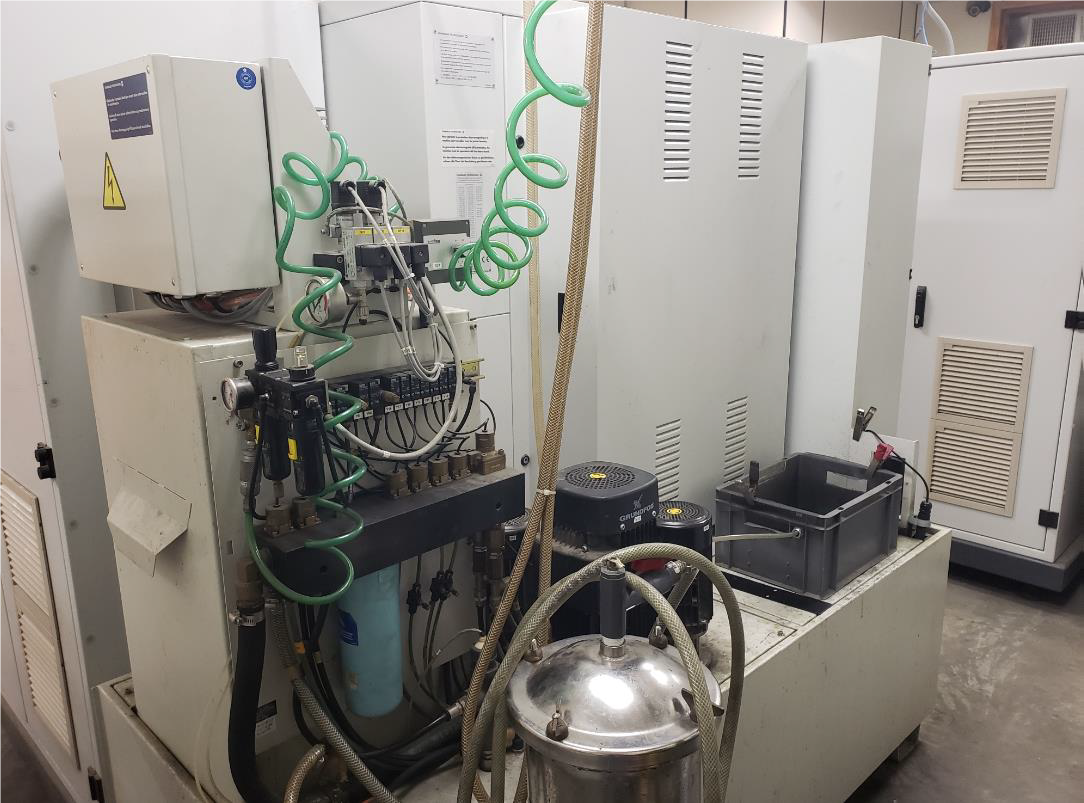

Total volume of dielectric 201 gal.
Dimensions of equipment 79.53” x 80.71” x 78.74”
Total weight of equipment (without dielectric) 5401 lbs.
Some of the above specification are subject to change, please be sure to confirm any questions prior to purchase.
